Premium

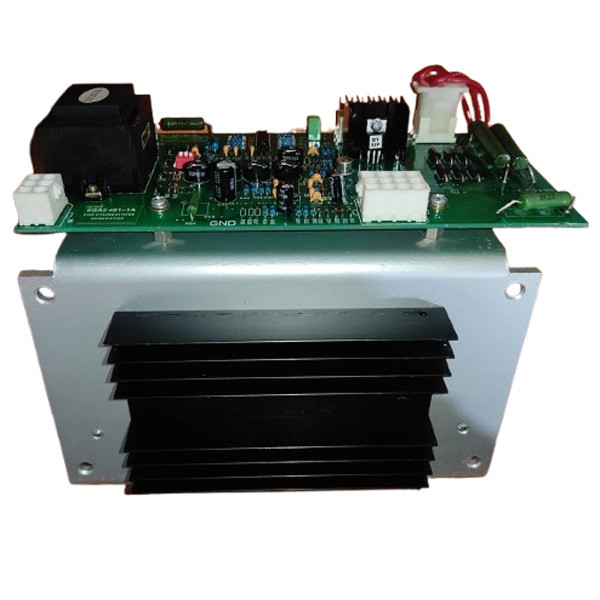

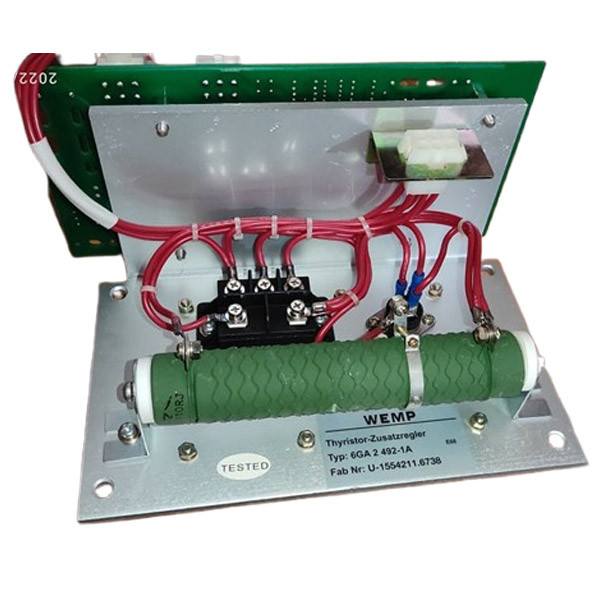

Quality Siemens Automatic Voltage Regulator(AVR) 6GA2-492-1A Generator
Siemens Automatic
Voltage Regulator (AVR) 6GA2-492-1A Generator
Click Here For Generator
Spare Parts
Condition:
Factory New Sealed
Availability:
In Stock
Ships:
Fast and Reliable Shipping
Factory
New Sealed Without Warranty
Ask Our
Experts
Click Here For More
Spare Parts
Generator
| Automation | Textile | Spinning
| Network
| Telecommunication
|Compressor
|Marine
| Electrical
| Motors
| Medical
| More | Mechanical | Sports | Agriculture |
Learn More
Mastering Voltage Regulation: Your Ultimate
Guide to Voltage Regulators
Voltage Regulator: The Key to Stable Power
Supply
Understanding the Basics of Voltage
Regulation
In today's digital age, where electronics
power everything from smartphones to complex industrial machinery, ensuring a
stable power supply is paramount. At the heart of this stability lies the
voltage regulator, a crucial component that maintains a consistent voltage
level regardless of fluctuations in input voltage or load conditions.
What is a Voltage Regulator?
A voltage regulator is an electronic device
or circuit that maintains a constant output voltage irrespective of changes in
input voltage, load current, or temperature. Essentially, it acts as a buffer
between the power source and the load, ensuring that the voltage reaching the
load remains within a specified range.
Types of Voltage Regulators
1.
Linear Voltage Regulators: These
regulators use a series pass transistor to regulate the output voltage. While
simple and low-cost, they are less efficient, especially for high voltage
differentials.
2.
Switching Voltage Regulators: Also
known as switching mode power supplies (SMPS), these regulators rapidly switch
a series element on and off to maintain the output voltage. They offer higher
efficiency but are more complex and expensive.
3.
Shunt Voltage Regulators: Shunt
regulators operate by providing a path to ground for excess current, thereby
maintaining a constant voltage across the load. They are commonly used in
low-power applications.
Importance of Voltage Regulation
·
Reliable Operation: Voltage
fluctuations can damage sensitive electronic components or cause system
malfunctions. By ensuring a stable voltage output, voltage regulators safeguard
against such issues, enhancing the reliability of electronic systems.
·
Improved Efficiency: Inefficient
voltage regulation can lead to unnecessary power consumption and heat
dissipation. By maintaining a constant voltage level, regulators optimize
energy usage and contribute to overall system efficiency.
·
Protection Against Voltage Spikes:
Voltage spikes or surges pose a significant threat to electronic devices.
Voltage regulators can mitigate the impact of such events by stabilizing the
output voltage and preventing it from exceeding safe limits.
Applications of Voltage Regulators
·
Consumer Electronics: Voltage
regulators are widely used in devices such as smartphones, laptops, and
televisions to ensure stable and reliable operation.
·
Automotive Electronics: In modern
vehicles, voltage regulators play a crucial role in regulating the voltage
supplied to various electronic systems, including engine control units (ECUs)
and infotainment systems.
·
Industrial Automation: Industrial
machinery and automation systems rely on voltage regulators to maintain precise
voltage levels for optimal performance and safety.
Tips for Choosing the Right Voltage Regulator
1.
Voltage Range: Ensure that the
regulator's input and output voltage ranges are compatible with your
application requirements.
2.
Current Capacity: Consider the maximum
current that the regulator can handle to meet the demands of your load.
3.
Efficiency: Evaluate the efficiency of
the regulator, especially for battery-powered or energy-conscious applications.
4.
Size and Form Factor: Choose a
regulator that fits within the space constraints of your design and is suitable
for your mounting requirements.
Voltage regulation is a critical aspect of
electronic system design, ensuring stable and reliable operation across a wide
range of applications. Whether you're building consumer electronics, automotive
systems, or industrial machinery, selecting the right voltage regulator is
essential for achieving optimal performance and longevity. By understanding the
fundamentals of voltage regulation and considering key factors in regulator
selection, you can master the art of maintaining a steady power supply in your
designs.
