Best EVO GPSPORTS 08291
Catapult HARDWARE OVERVIEW Sports Device
Unit Dimensions: 63.6 x 43.7 x 18.5mm
Unit Weight: 53 grams
EVO Run Time: ~6 hours max.
EVO charge time: 3 hours
Battery: Lithium Ion
Unit memory: 4GB (or max. 31 sessions stored at a time)
GPS Info: 10 Hertz True GPS
HR Compatibility: Polar H1 or T34

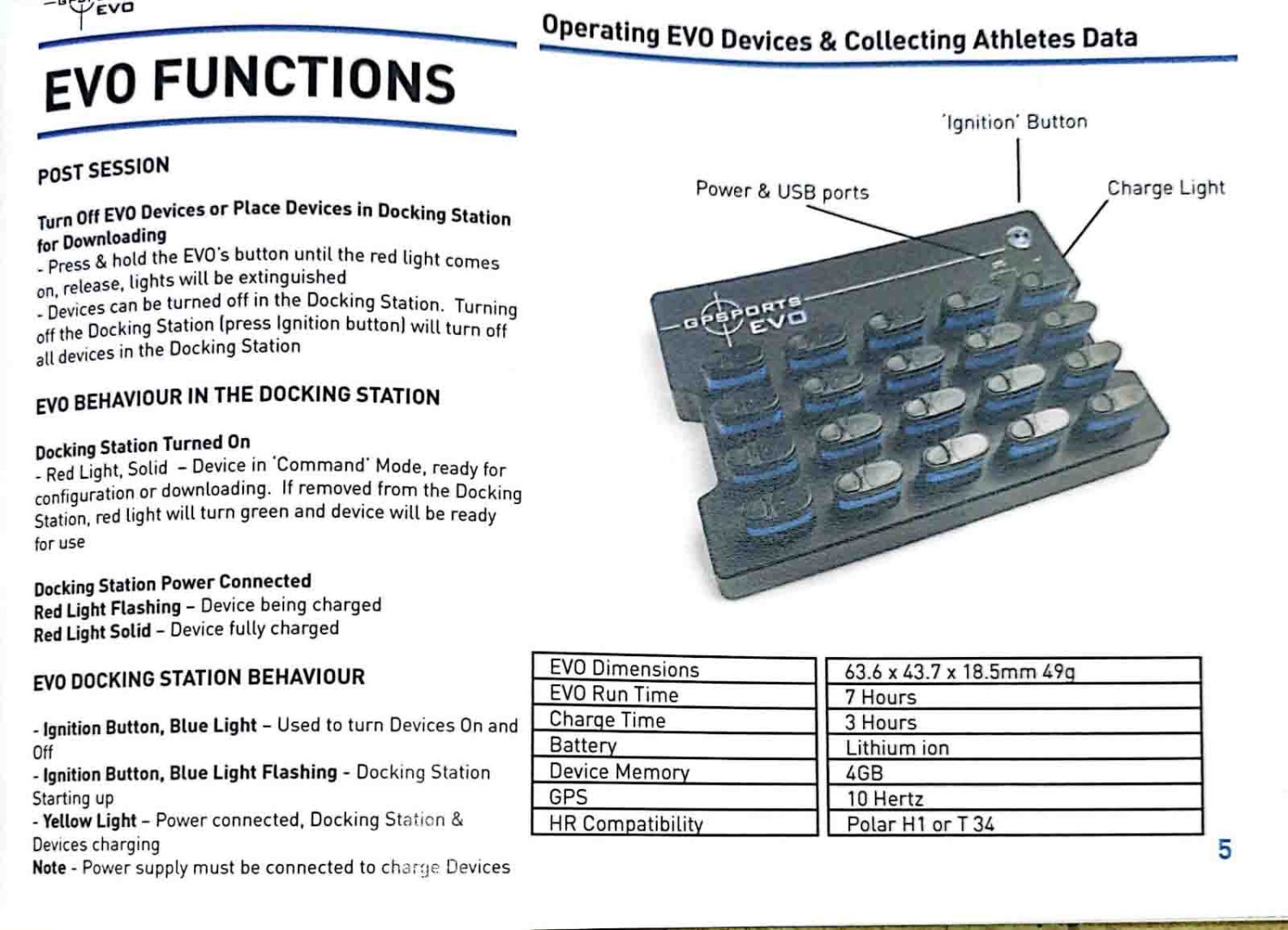

LED Sequence
Outdoor Mode:
§ When on, the Top LED will be green and solid when Searching
for GPS lock; when GPS lock is obtained the top LED will be green and flashing.
§ When the a Heart Rate has been detected by a paired HR
monitor, the top LED will be red and flashing.
§ The Top LED will be off when the device is off.
Indoor Mode:
§ When on, the Top LED will be green and solid.
§ When the a Heart Rate has been detected by a paired HR
monitor, the top LED will be red and flashing.
Connected to PC:
§ When the Device is successfully communicating to the PC over
USB and is in a charging state, the top LED be a flashing red. If the devices
are connected to the PC and are fully charged, the top LED will be solid
red.
Charging:
§ When charging only, the Top LED will be flashing and red;
when the Device is fully charged the Top LED will stay a solid red.
Radio Frequency
The
EVO device operates on the 2.4GHz Spectrum to send data live across the air, to
be received by the GPS Receiver. This signal can be influenced by interference
(other sources of 2.4GHz RF) as well as physical obstruction (E.g Body in the
way of the receiver)
Click Here
For More Spare Parts
Condition:
Factory New Sealed
Availability:
In Stock
Ships:
Fast and Reliable Shipping
Factory
New Sealed Without Warranty
