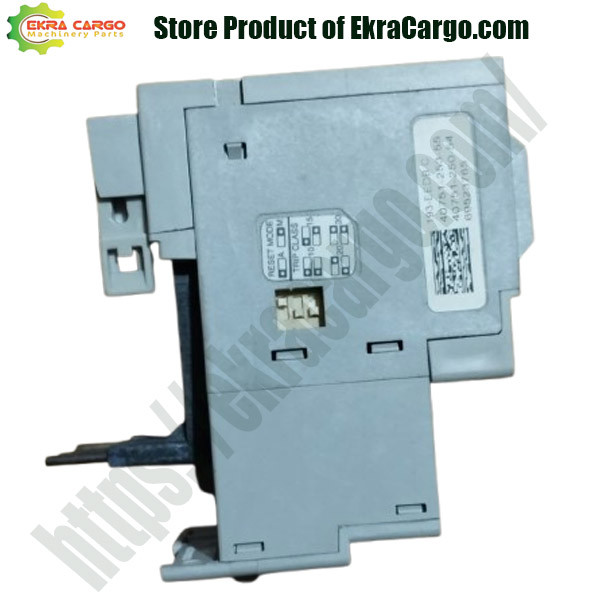

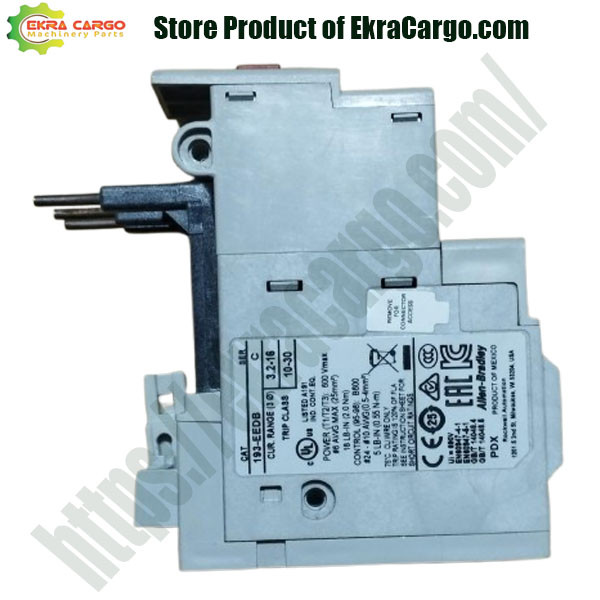

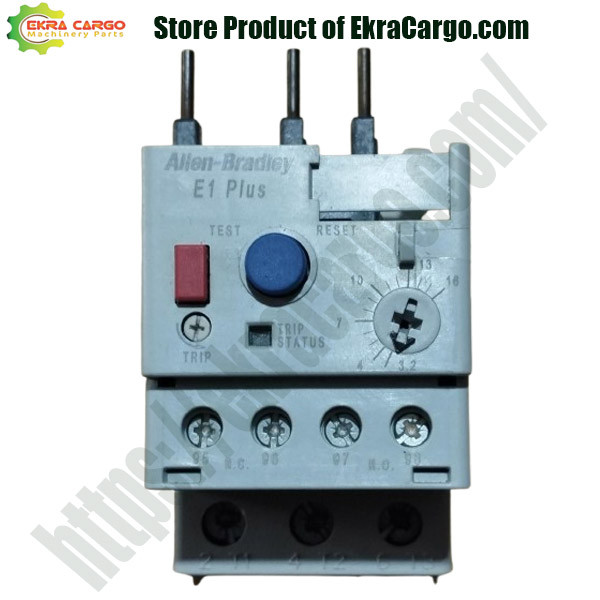

Allen-Bradley 193-EEDB Circuit Breaker

Allen-Bradley 193-EEDB Circuit Breaker

The Allen-Bradley 193-EEDB is a high-performance circuit breaker designed for industrial control applications. Manufactured by Rockwell Automation, this breaker offers reliable protection against overcurrent conditions, ensuring the safety and longevity of your electrical systems.

Key Features:

✔ Current Range: 3.2-16A
✔ Trip Class: 10-30
✔ Voltage Rating: 600V max for T1/T2/T3, 690V Uj
✔ Wire Size:

• Power: #6 AWG max (25mm²)
• Control: #24-#10 AWG (0.5-4mm)
  ✔ Torque Settings:
• Power Connections: 18 lb-in (2.0 Nm)
• Control Connections: 5 lb-in (0.55 Nm)
  ✔ Temperature Rating: 75°C, CU wire only
  ✔ Trip Rating: 120% of Full Load Amp (FLA)
  ✔ Certifications:
• UL Listed (A191)
• CE Certified
• EAC K Certification
• GB/T 14048.4 and 14048.6 compliant
  ✔ Manufactured in: Mexico

This circuit breaker is designed to provide superior protection against electrical faults in industrial environments, with easy installation and reliable operation for enhanced safety.

? Ideal for industrial applications requiring dependable circuit protection!
